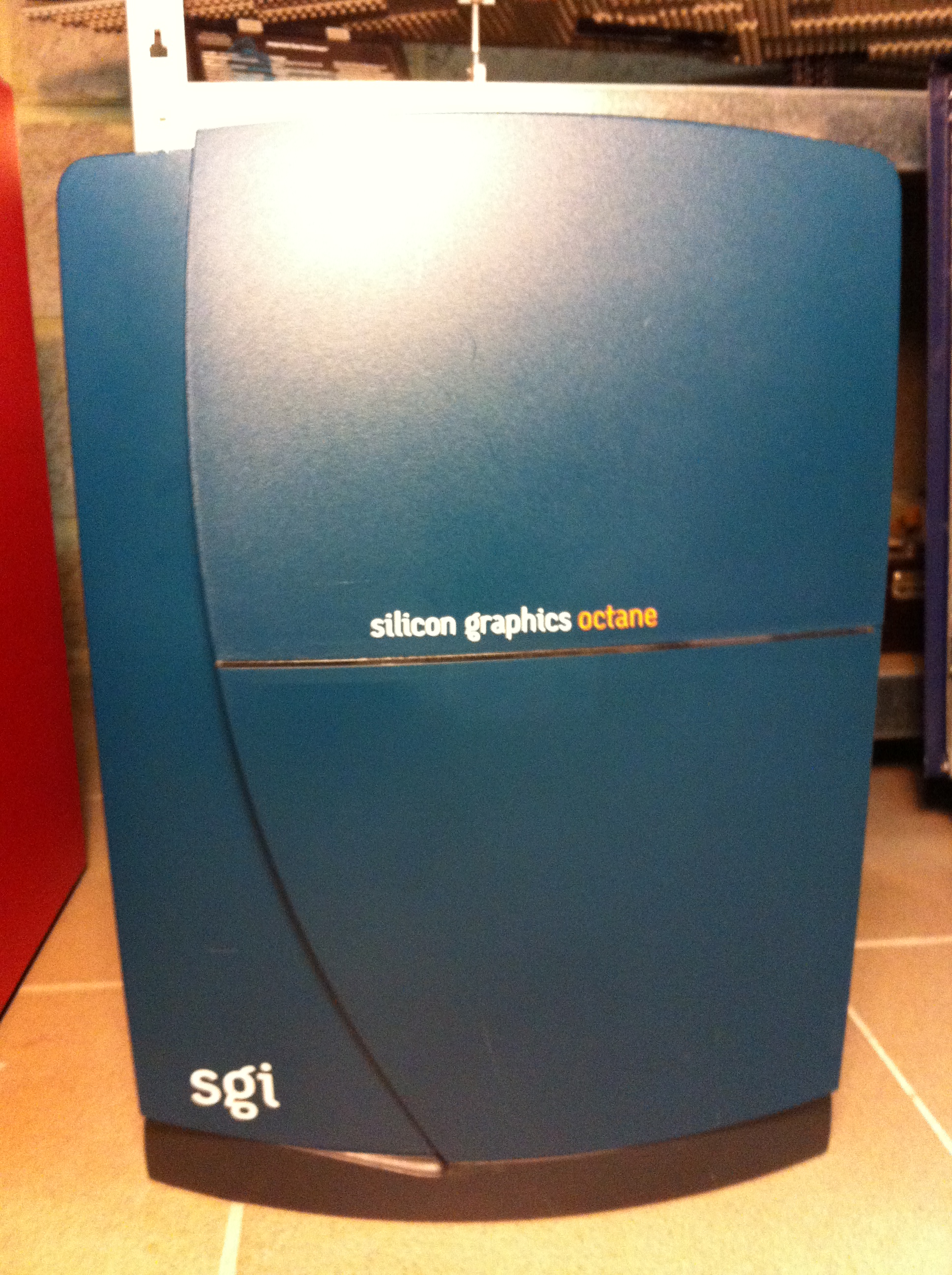

Brent – one of my Octanes. This one has Odyssey graphics and an additional fibre channel XIO board. It has a working lightbar. The white lamp has been replaced with a green LED.
brent 1# hinv -mv
Location: /hw/node
PM10400MHZ Board: barcode LKH982 part 030-1475-001 rev C
Location: /hw/node/xtalk/15
IP30 Board: barcode KES231 part 030-1467-001 rev D
Location: /hw/node/xtalk/15/pci/2
FP1 Board: barcode KDX783 part 030-0891-003 rev F
PWR.SPPLY.ER Board: barcode AAE9420079 part 060-0035-002 rev A
Location: /hw/node/xtalk/11
ODY32 Board: barcode LKA001 part 030-1403-003 rev B
Location: /hw/node/xtalk/9
FIBRE_CHANNEL Board: barcode GLH618 part 030-0927-003 rev D
1 400 MHZ IP30 Processor
Heart ASIC: Revision F
CPU: MIPS R12000 Processor Chip Revision: 3.5
FPU: MIPS R12010 Floating Point Chip Revision: 0.0
Main memory size: 2048 Mbytes
Xbow ASIC: Revision 1.4
Instruction cache size: 32 Kbytes
Data cache size: 32 Kbytes
Secondary unified instruction/data cache size: 2 Mbytes
Integral SCSI controller 0: Version QL1040B (rev. 2), single ended
Disk drive: unit 1 on SCSI controller 0 (unit 1)
Integral SCSI controller 1: Version QL1040B (rev. 2), single ended
Integral SCSI controller 2: Version Fibre Channel AIC-1160, revision 2
Integral SCSI controller 3: Version Fibre Channel AIC-1160, revision 2
IOC3/IOC4 serial port: tty1
IOC3/IOC4 serial port: tty2
IOC3 parallel port: plp1
Graphics board: V6
Integral Fast Ethernet: ef0, version 1, pci 2
Iris Audio Processor: version RAD revision 12.0, number 1
PCI Adapter ID (vendor 0x10a9, device 0x0003) PCI slot 2
PCI Adapter ID (vendor 0x1077, device 0x1020) PCI slot 0
PCI Adapter ID (vendor 0x1077, device 0x1020) PCI slot 1
PCI Adapter ID (vendor 0x10a9, device 0x0005) PCI slot 3
PCI Adapter ID (vendor 0x9004, device 0x1160) PCI slot 0
PCI Adapter ID (vendor 0x9004, device 0x1160) PCI slot 1
brent 2# /usr/gfx/gfxinfo -v
Graphics board 0 is "ODYSSEY" graphics.
Managed (":0.0") 1280x1024
BUZZ version A.1
PB&J version 1
32MB memory
Banks: 2, CAS latency: 3
Monitor 0 type: Unknown
(Could not contact X server; thus, no XSGIvc information available)
brent 4# diskpatch -v
sc0d1l0: Disk SGI ST318404LC 3126 Serial: 3BT28PHV
brent 5# uname -aR
IRIX64 brent 6.5 6.5.28f 07010238 IP30
