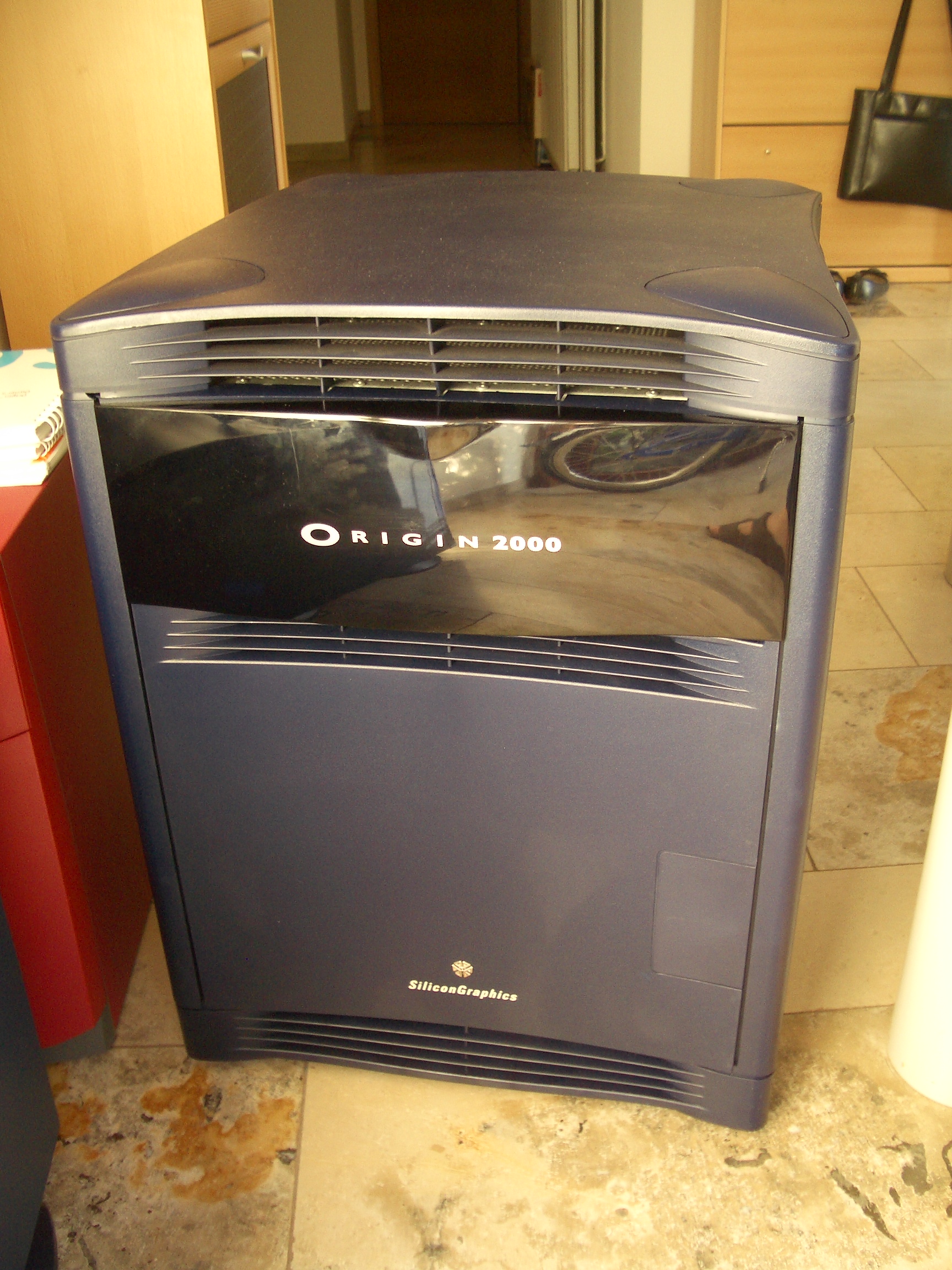

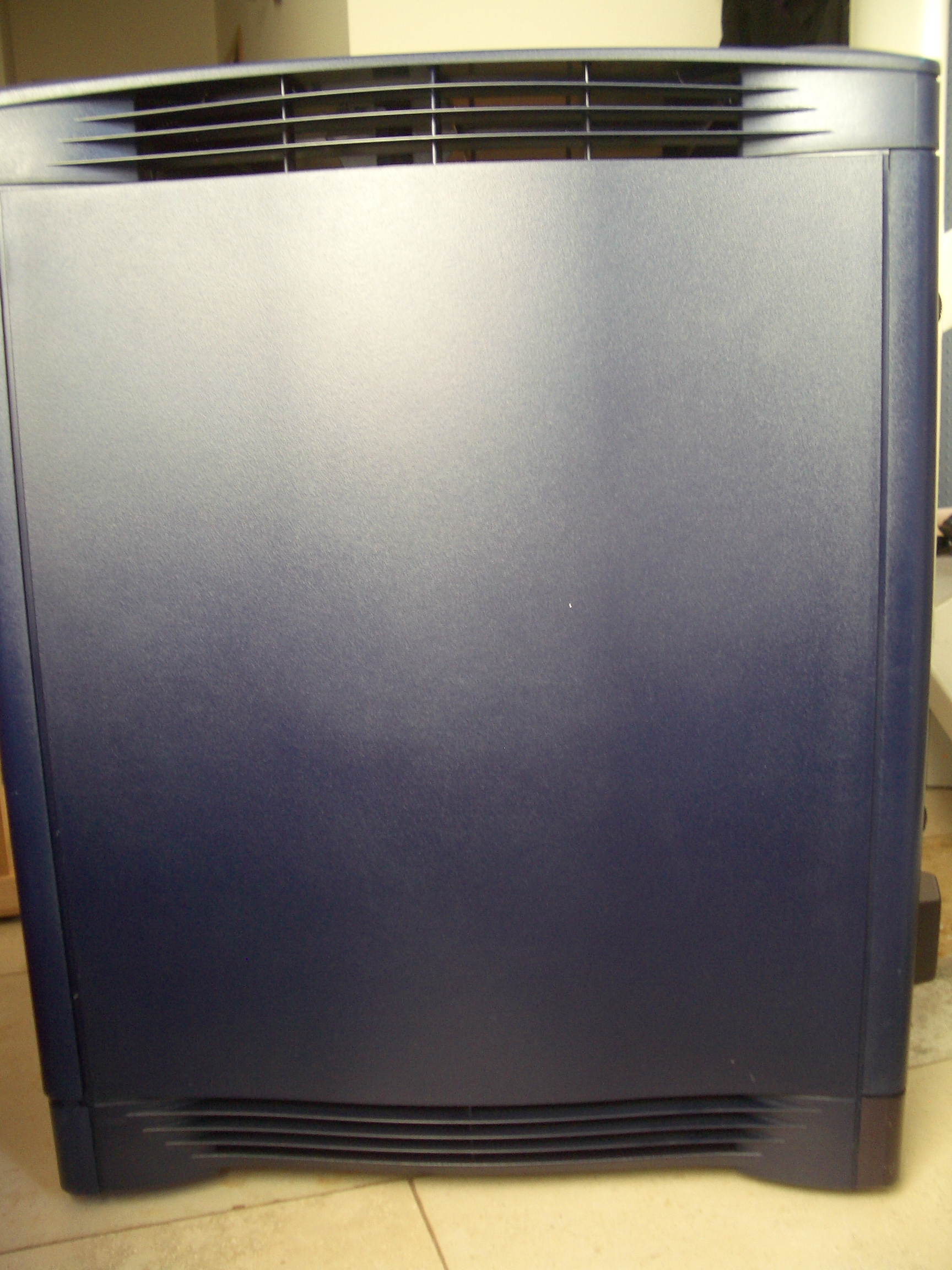

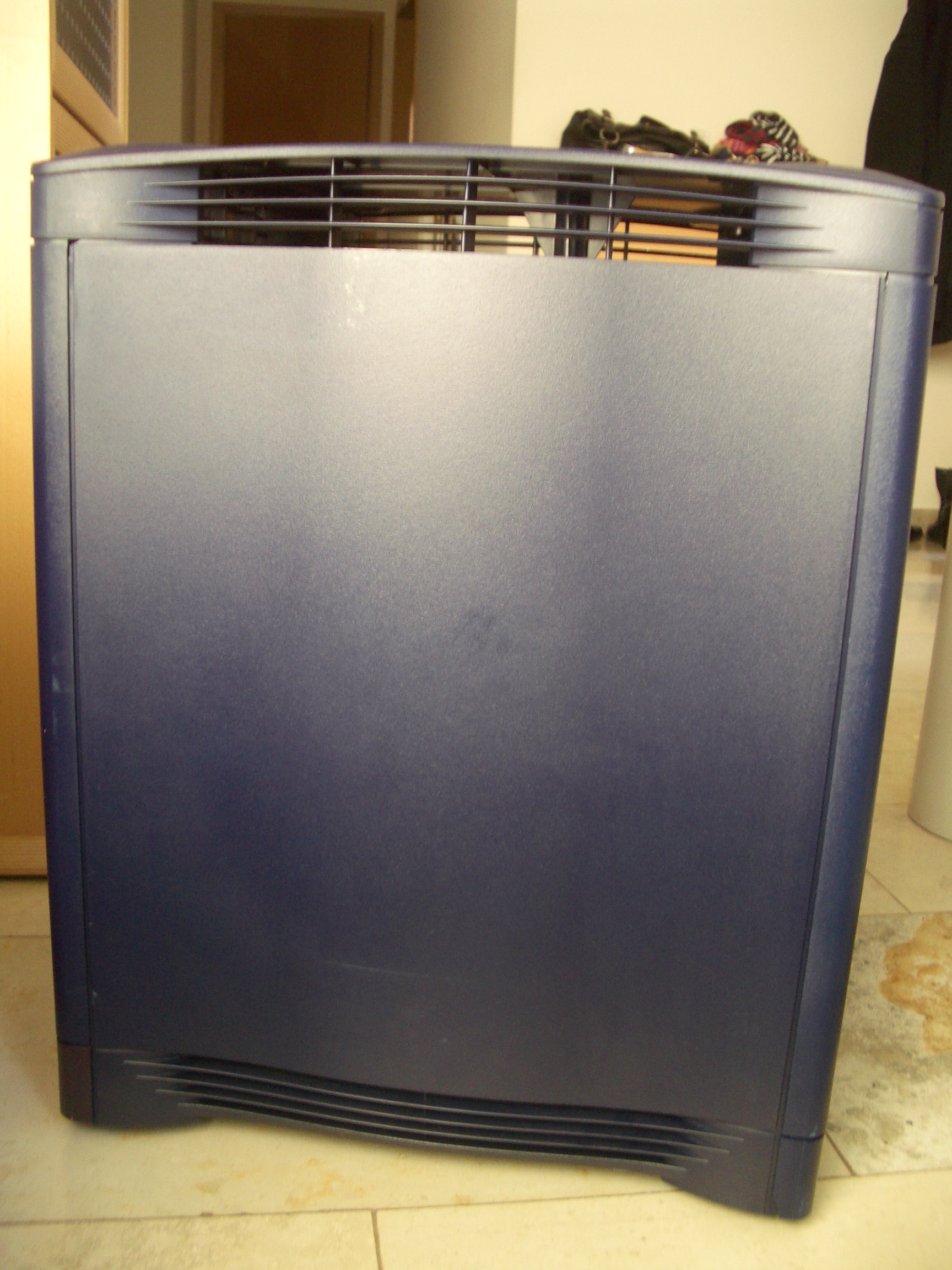

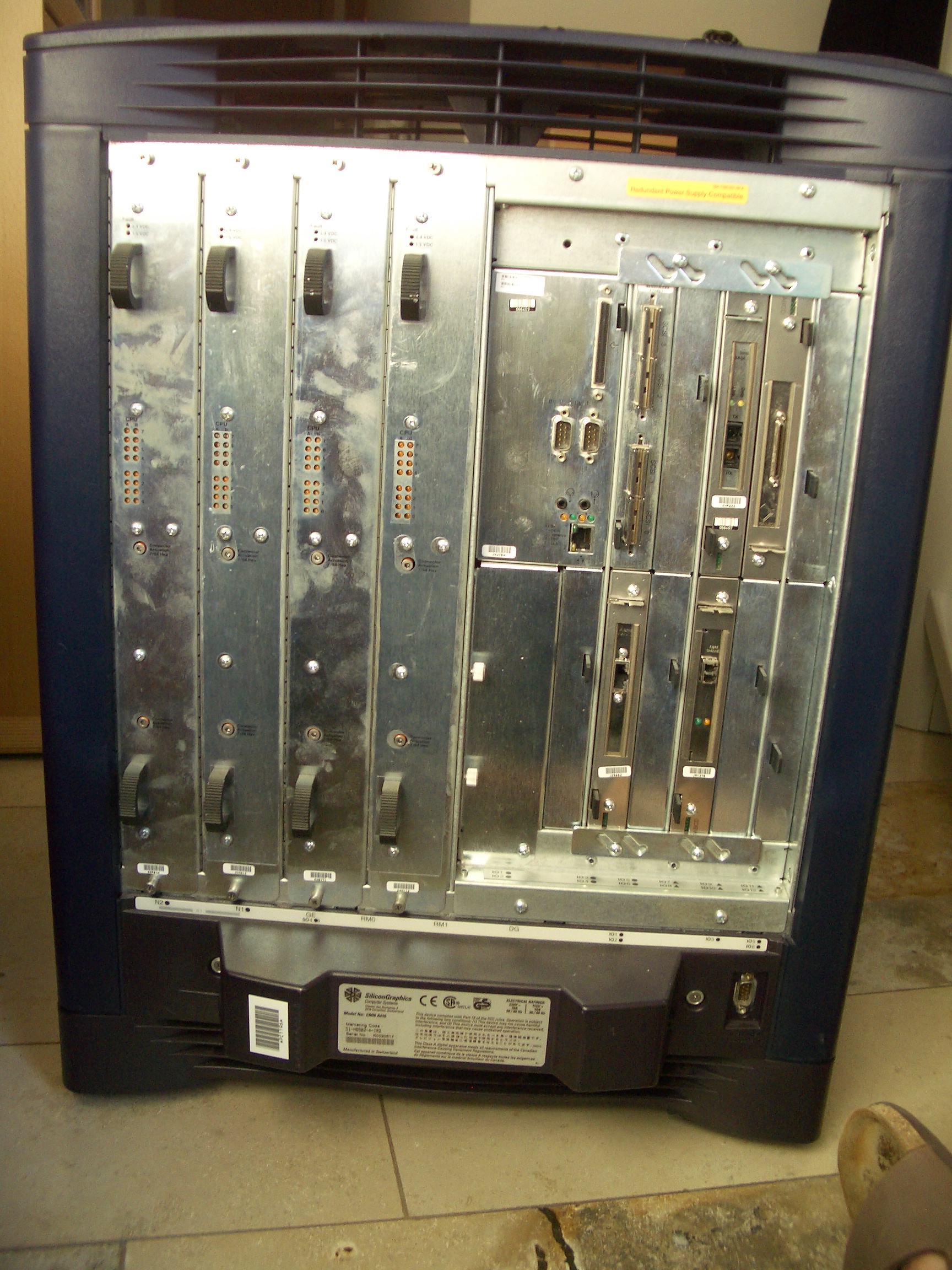

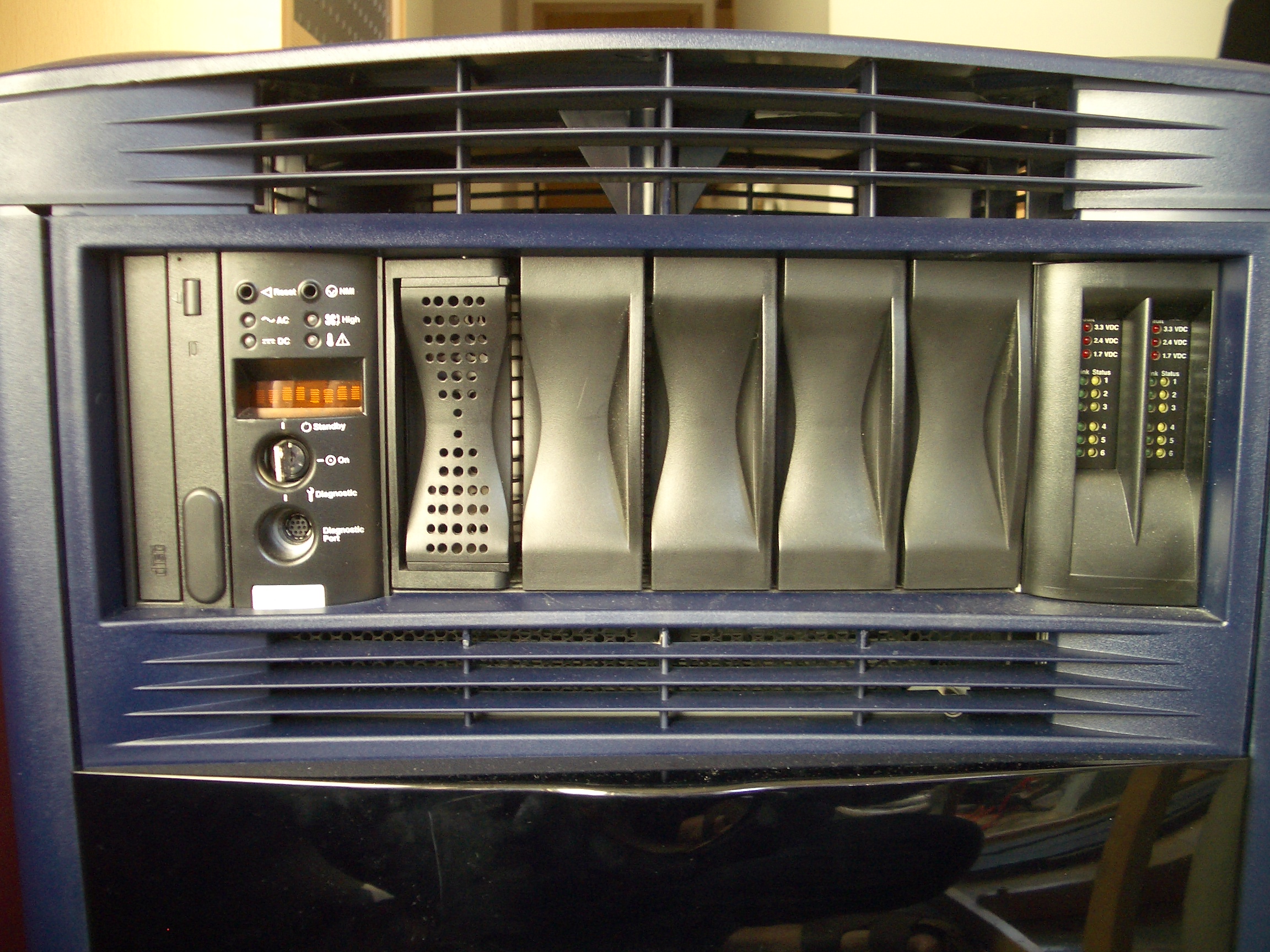

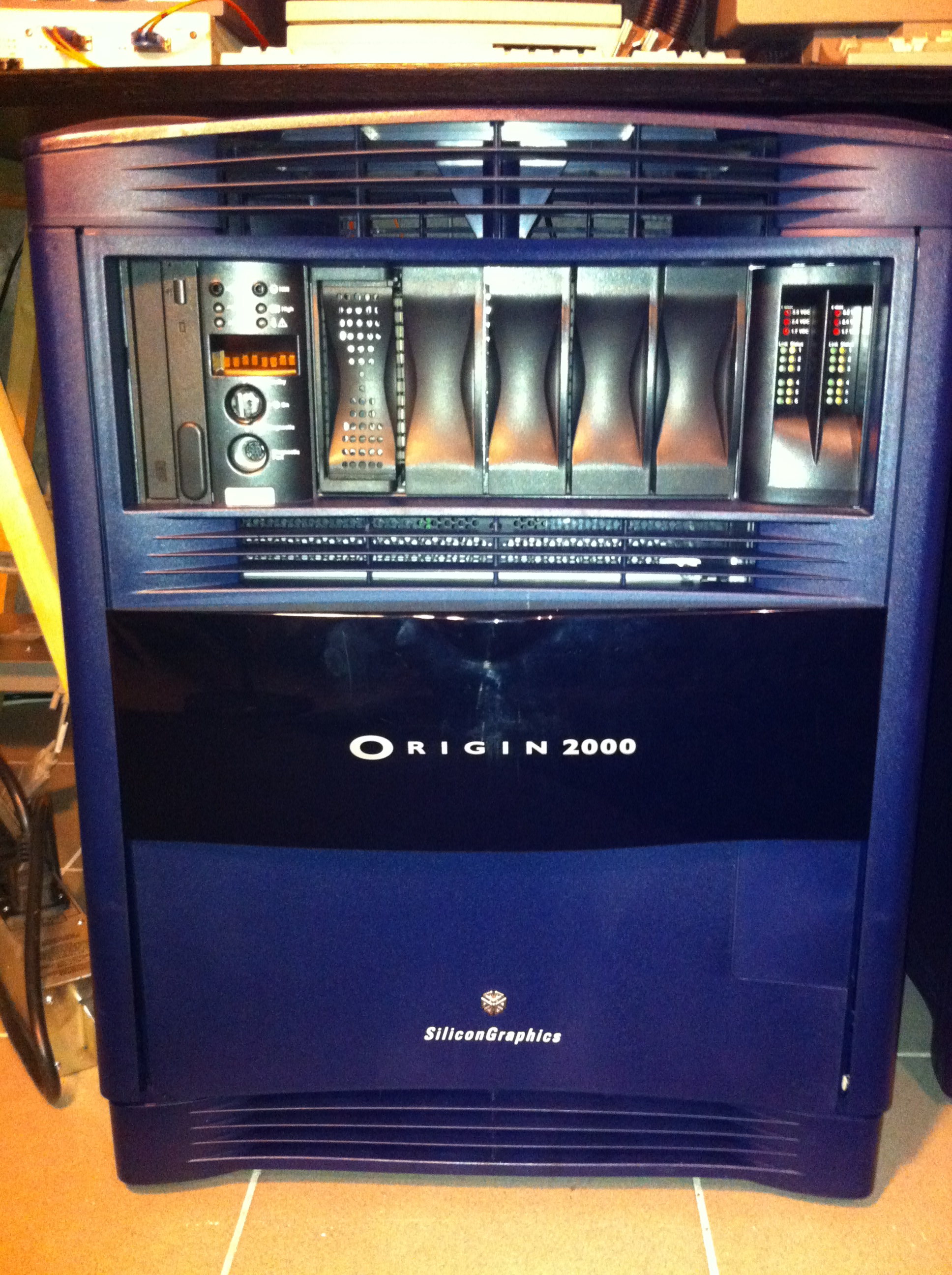

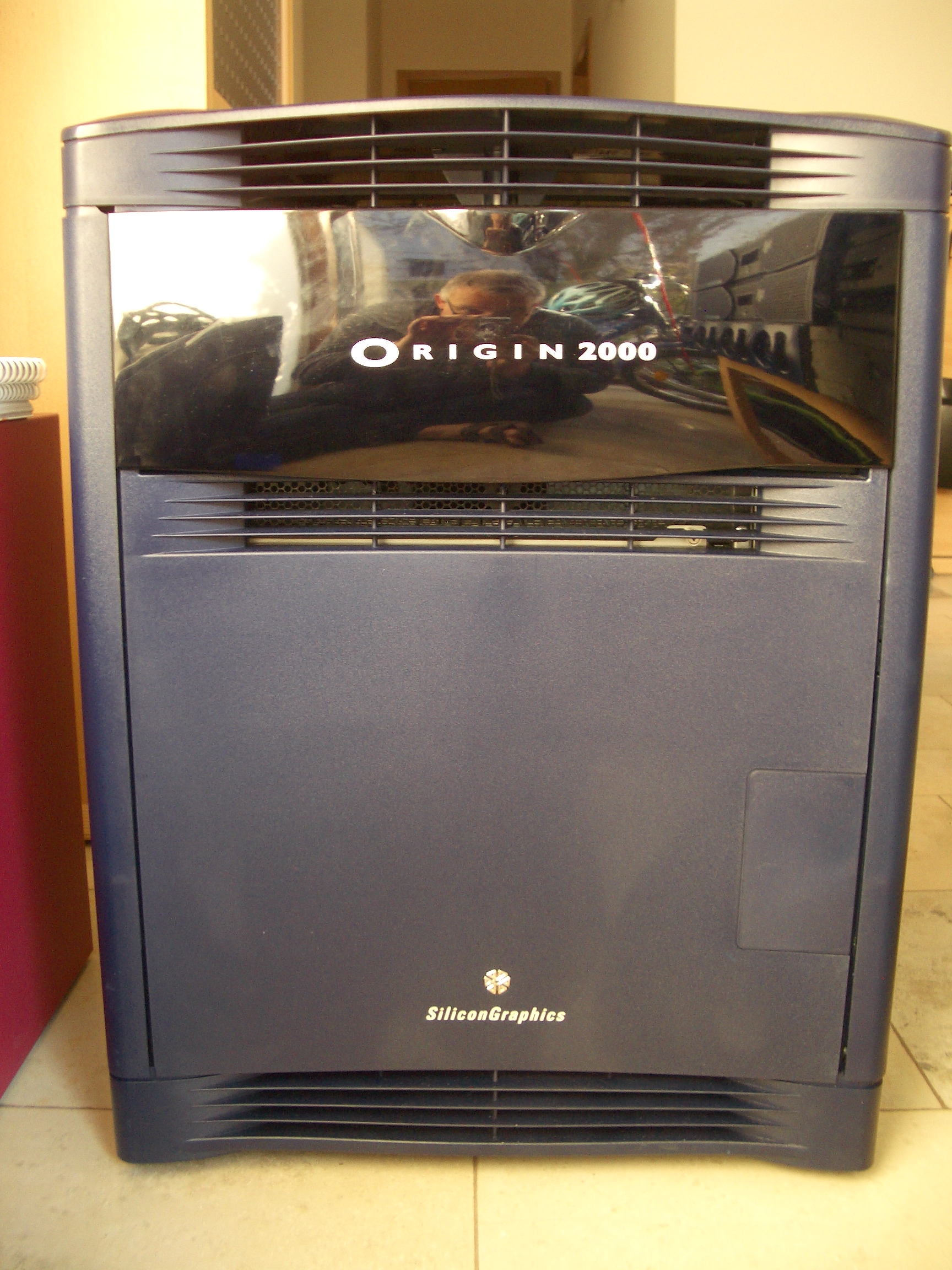

This is probably as beautiful as a server can get: Barry, an sgi Origin 2000 Deskside. I originally got it as a naked cube lacking the wheelbase or any skins. It was probably ripped out of a rack. So I had to inventory, buy a wheelbase, clean, get router boards to be able to use 4 nodeboards, I even got the „Craylink Jumper“ to connect the routers and finally got skins in mediocre shape. I did my best to clean them and even moulded some replacement hinges to some of the skins. Now, she looks really beautiful I think. But you better not touch. 🙂
barry 1# hinv -mv

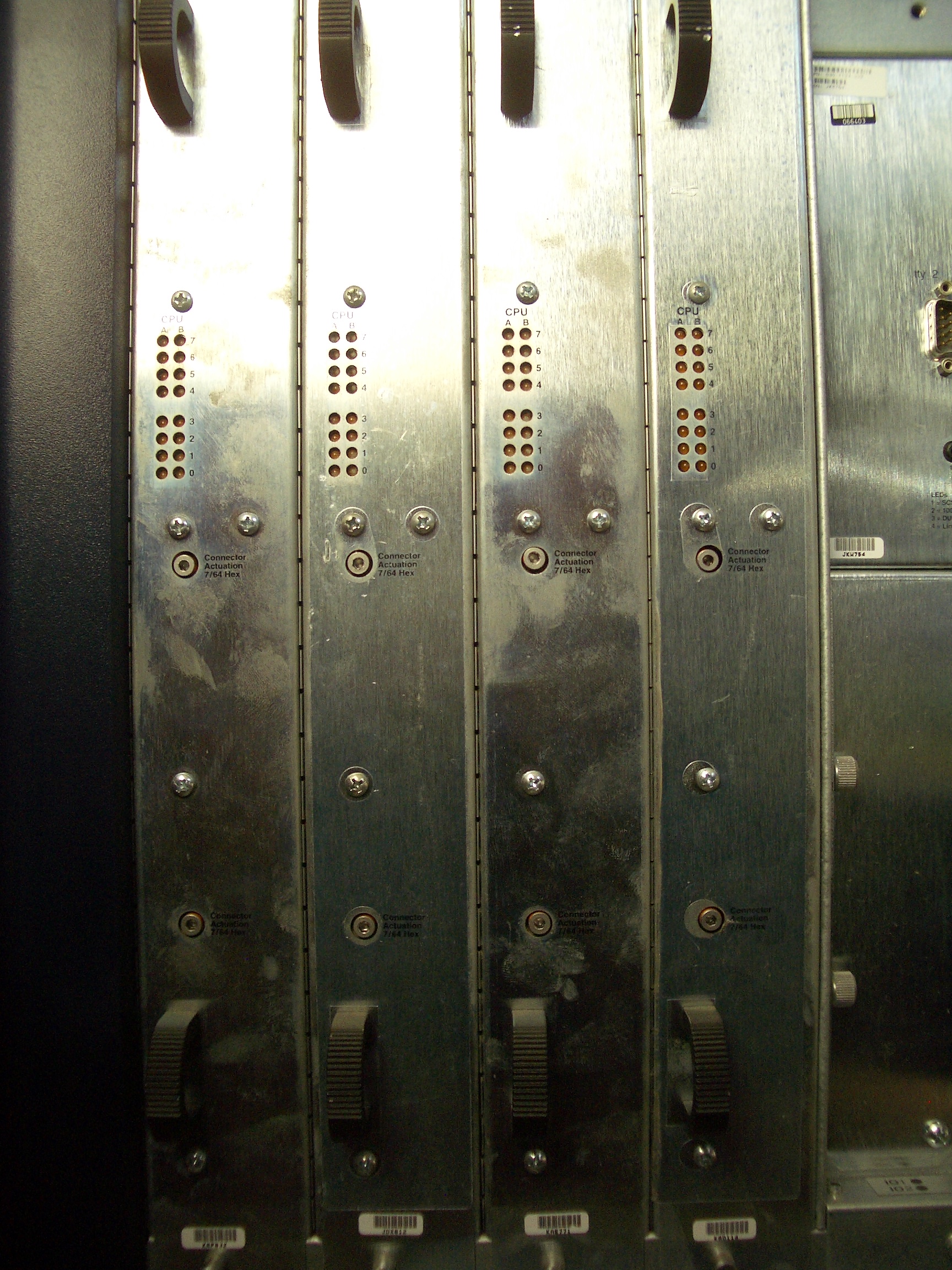

Location: /hw/module/1/slot/n1/node
MODULEID Board: barcode K0023911 part rev
IP31PIMM8MB Board: barcode KAD570 part 030-1401-002 rev B
IP31 Board: barcode KAD114 part 030-1255-003 rev D
8P12_MPLN Board: barcode JSB775 part 030-0762-006 rev M
Location: /hw/module/1/slot/n2/node
IP31PIMM8MB Board: barcode KAE589 part 030-1401-002 rev C
IP31 Board: barcode KAE771 part 030-1255-004 rev A
Location: /hw/module/1/slot/n3/node
IP31 Board: barcode JDX812 part 030-1255-003 rev D
IP31PIMM8MB Board: barcode KAG554 part 030-1401-002 rev B
Location: /hw/module/1/slot/n4/node
IP31 Board: barcode KRP832 part 030-1255-004 rev A
IP31PIMM8MB Board: barcode KRP644 part 030-1401-002 rev C
Location: /hw/module/1/slot/r1/router
ROUTER_IR1 Board: barcode HMA666 part 030-0841-003 rev B
Location: /hw/module/1/slot/r2/router
ROUTER_IR1 Board: barcode KWW771 part 030-0841-003 rev C

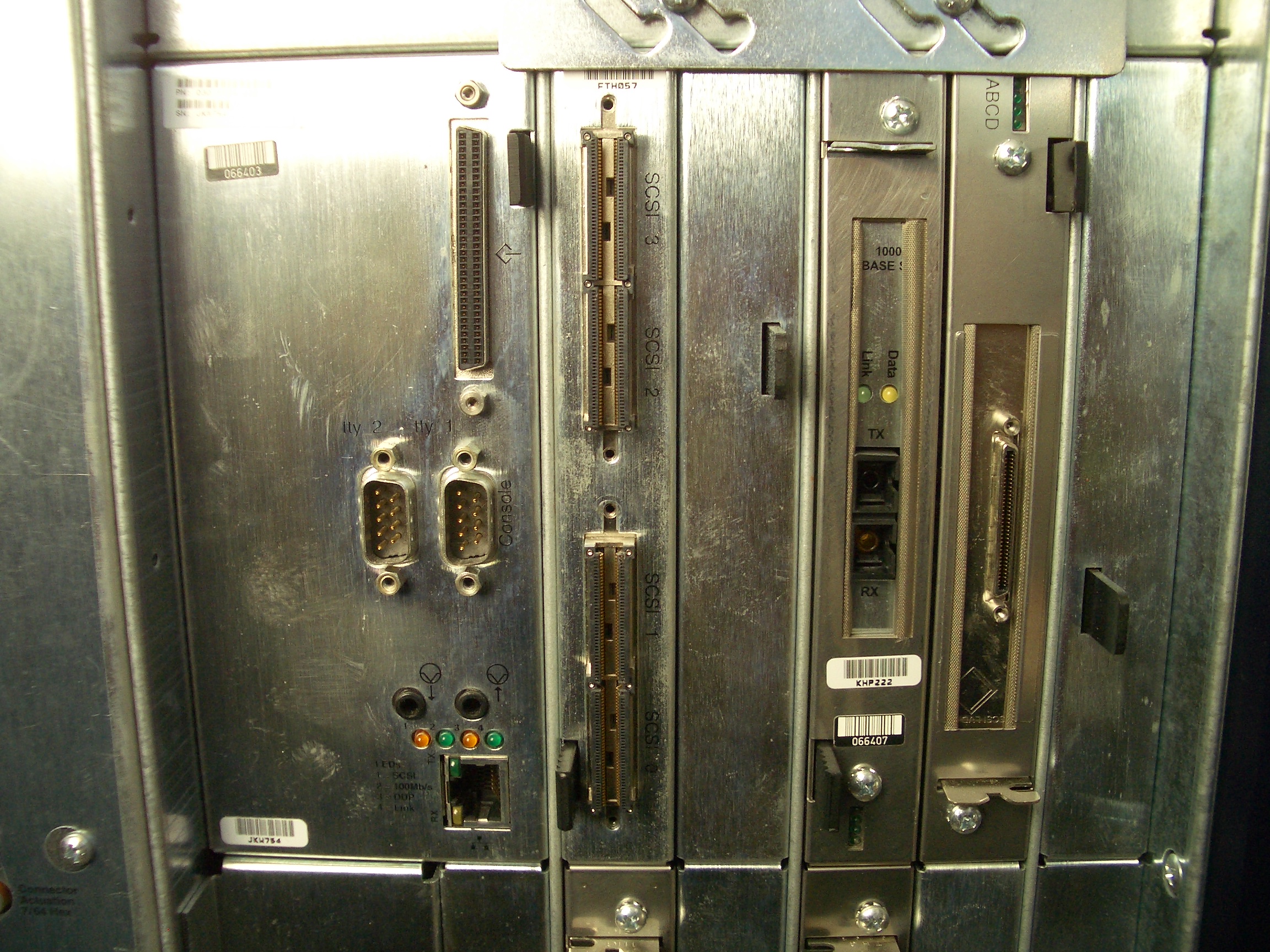

Location: /hw/module/1/slot/io4/xtalk_pci
XTALK_PCI Board: barcode JZS662 part 030-1275-003 rev A
Location: /hw/module/1/slot/io8/xtalk_pci
XTALK_PCI Board: barcode MHE327 part 030-1275-004 rev A
Location: /hw/module/1/slot/io7/xtalk_pci
XTALK_PCI Board: barcode KHP222 part 030-1275-003 rev A
Location: /hw/module/1/slot/io1/baseio
BASEIO Board: barcode JKW754 part 030-1124-002 rev M
Location: /hw/module/1/slot/io9/xtalk_pci
XTALK_PCI Board: barcode KAH403 part 030-1275-002 rev B
Location: /hw/module/1/slot/io3/mscsi
MSCSI Board: barcode FTH057 part 030-1243-001 rev G
8 300 MHZ IP27 Processors
CPU: MIPS R12000 Processor Chip Revision: 2.3
FPU: MIPS R12010 Floating Point Chip Revision: 2.3
CPU 0 at Module 1/Slot 1/Slice A: 300 Mhz MIPS R12000 Processor Chip (enabled)
Processor revision: 2.3. Scache: Size 8 MB Speed 200 Mhz Tap 0xa
CPU 1 at Module 1/Slot 1/Slice B: 300 Mhz MIPS R12000 Processor Chip (enabled)
Processor revision: 2.3. Scache: Size 8 MB Speed 200 Mhz Tap 0xa
CPU 2 at Module 1/Slot 2/Slice A: 300 Mhz MIPS R12000 Processor Chip (enabled)
Processor revision: 2.3. Scache: Size 8 MB Speed 200 Mhz Tap 0xa
CPU 3 at Module 1/Slot 2/Slice B: 300 Mhz MIPS R12000 Processor Chip (enabled)
Processor revision: 2.3. Scache: Size 8 MB Speed 200 Mhz Tap 0xa
CPU 4 at Module 1/Slot 3/Slice A: 300 Mhz MIPS R12000 Processor Chip (enabled)
Processor revision: 2.3. Scache: Size 8 MB Speed 200 Mhz Tap 0xa
CPU 5 at Module 1/Slot 3/Slice B: 300 Mhz MIPS R12000 Processor Chip (enabled)
Processor revision: 2.3. Scache: Size 8 MB Speed 200 Mhz Tap 0xa
CPU 6 at Module 1/Slot 4/Slice A: 300 Mhz MIPS R12000 Processor Chip (enabled)
Processor revision: 2.3. Scache: Size 8 MB Speed 200 Mhz Tap 0xa
CPU 7 at Module 1/Slot 4/Slice B: 300 Mhz MIPS R12000 Processor Chip (enabled)
Processor revision: 2.3. Scache: Size 8 MB Speed 200 Mhz Tap 0xa
Main memory size: 16384 Mbytes
Instruction cache size: 32 Kbytes
Data cache size: 32 Kbytes
Secondary unified instruction/data cache size: 8 Mbytes
Memory at Module 1/Slot 1: 4096 MB (enabled)
Bank 0 contains 512 MB (Standard) DIMMS (enabled)
Bank 1 contains 512 MB (Standard) DIMMS (enabled)
Bank 2 contains 512 MB (Standard) DIMMS (enabled)
Bank 3 contains 512 MB (Standard) DIMMS (enabled)
Bank 4 contains 512 MB (Standard) DIMMS (enabled)
Bank 5 contains 512 MB (Standard) DIMMS (enabled)
Bank 6 contains 512 MB (Standard) DIMMS (enabled)
Bank 7 contains 512 MB (Standard) DIMMS (enabled)
Memory at Module 1/Slot 2: 4096 MB (enabled)
Bank 0 contains 512 MB (Standard) DIMMS (enabled)
Bank 1 contains 512 MB (Standard) DIMMS (enabled)
Bank 2 contains 512 MB (Standard) DIMMS (enabled)
Bank 3 contains 512 MB (Standard) DIMMS (enabled)
Bank 4 contains 512 MB (Standard) DIMMS (enabled)
Bank 5 contains 512 MB (Standard) DIMMS (enabled)
Bank 6 contains 512 MB (Standard) DIMMS (enabled)
Bank 7 contains 512 MB (Standard) DIMMS (enabled)
Memory at Module 1/Slot 3: 4096 MB (enabled)
Bank 0 contains 512 MB (Standard) DIMMS (enabled)
Bank 1 contains 512 MB (Standard) DIMMS (enabled)
Bank 2 contains 512 MB (Standard) DIMMS (enabled)
Bank 3 contains 512 MB (Standard) DIMMS (enabled)
Bank 4 contains 512 MB (Standard) DIMMS (enabled)
Bank 5 contains 512 MB (Standard) DIMMS (enabled)
Bank 6 contains 512 MB (Standard) DIMMS (enabled)
Bank 7 contains 512 MB (Standard) DIMMS (enabled)
Memory at Module 1/Slot 4: 4096 MB (enabled)
Bank 0 contains 512 MB (Standard) DIMMS (enabled)
Bank 1 contains 512 MB (Standard) DIMMS (enabled)
Bank 2 contains 512 MB (Standard) DIMMS (enabled)
Bank 3 contains 512 MB (Standard) DIMMS (enabled)
Bank 4 contains 512 MB (Standard) DIMMS (enabled)
Bank 5 contains 512 MB (Standard) DIMMS (enabled)
Bank 6 contains 512 MB (Standard) DIMMS (enabled)
Bank 7 contains 512 MB (Standard) DIMMS (enabled)
ROUTER in Module 1/Slot 2: Revision 2: Active Ports [3,4,5,6] (enabled)
ROUTER in Module 1/Slot 4: Revision 2: Active Ports [3,4,5,6] (enabled)

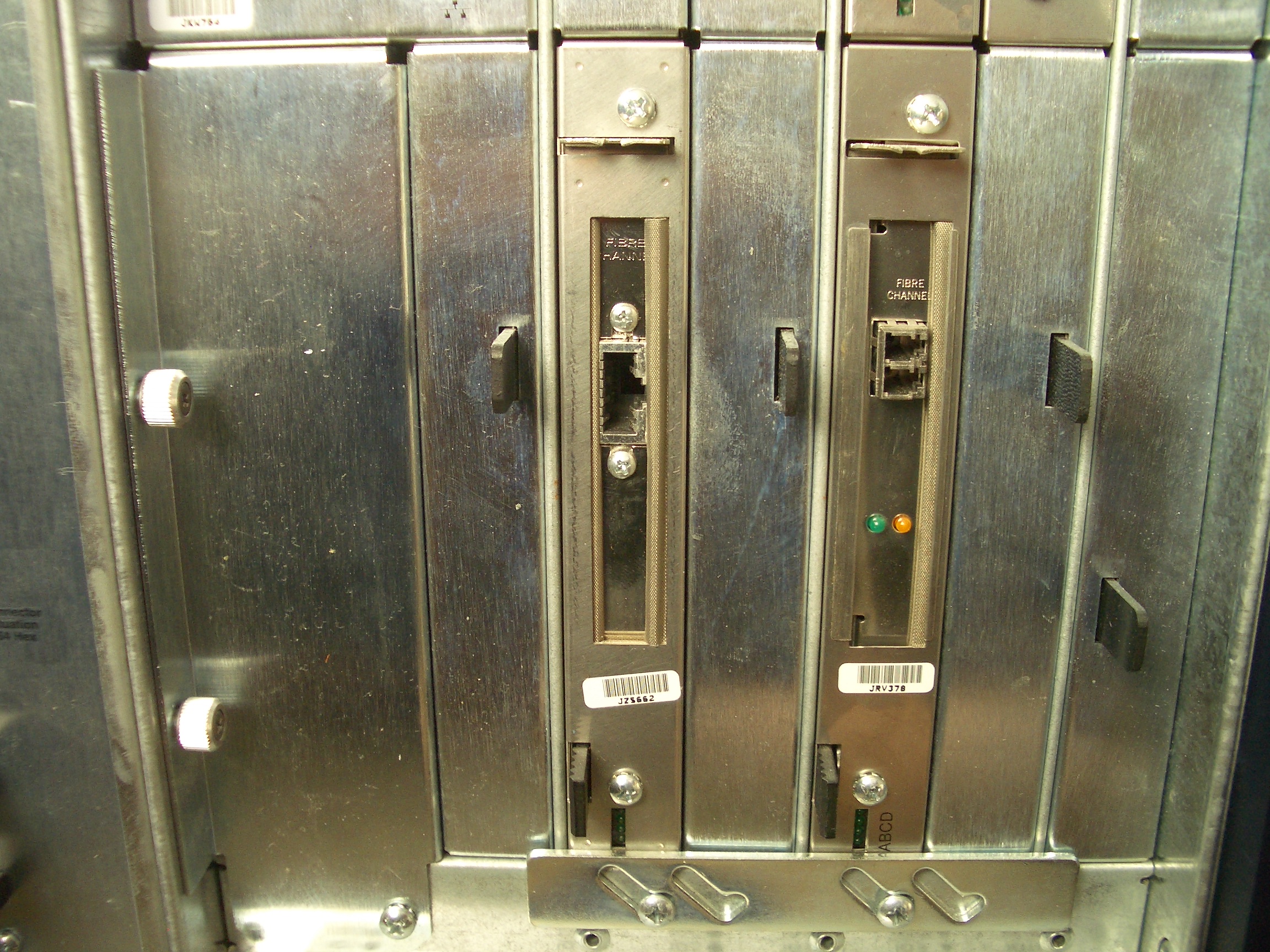

Integral SCSI controller 2: Version Fibre Channel QL2200A, 33 MHz PCI
Integral SCSI controller 3: Version Fibre Channel QL2310, 33 MHz PCI
Integral SCSI controller 0: Version QL1040B (rev. 2), single ended
Disk drive: unit 1 on SCSI controller 0 (unit 1)
CDROM: unit 6 on SCSI controller 0
Integral SCSI controller 1: Version QL1040B (rev. 2), single ended
Integral SCSI controller 4: Version QL1080, low voltage differential
Integral SCSI controller 5: Version QL1040B (rev. 2), differential
Integral SCSI controller 6: Version QL1040B (rev. 2), differential
Integral SCSI controller 7: Version QL1040B (rev. 2), differential
Integral SCSI controller 8: Version QL1040B (rev. 2), differential
IOC3/IOC4 serial port: tty1
IOC3/IOC4 serial port: tty2
Gigabit Ethernet: eg0, module 1, XIO slot io7, firmware version 12.4.10
Integral Fast Ethernet: ef0, version 1, module 1, slot io1, pci 2
PCI Adapter ID (vendor 0x1077, device 0x2200) PCI slot 1
Origin BASEIO board, module 1 slot 1: Revision 4
PCI Adapter ID (vendor 0x1077, device 0x2300) PCI slot 1
PCI Adapter ID (vendor 0x10a9, device 0x0009) PCI slot 1
PCI Adapter ID (vendor 0x10a9, device 0x0003) PCI slot 2
PCI Adapter ID (vendor 0x1077, device 0x1020) PCI slot 0
PCI Adapter ID (vendor 0x1077, device 0x1020) PCI slot 1
Origin MSCSI board, module 1 slot 3: Revision 3
PCI Adapter ID (vendor 0x1077, device 0x1080) PCI slot 1
PCI Adapter ID (vendor 0x1077, device 0x1020) PCI slot 0
PCI Adapter ID (vendor 0x1077, device 0x1020) PCI slot 1
PCI Adapter ID (vendor 0x1077, device 0x1020) PCI slot 2
PCI Adapter ID (vendor 0x1077, device 0x1020) PCI slot 3
IOC3/IOC4 external interrupts: 1
HUB in Module 1/Slot 1: Revision 5 Speed 100.00 Mhz (enabled)
HUB in Module 1/Slot 2: Revision 5 Speed 100.00 Mhz (enabled)
HUB in Module 1/Slot 3: Revision 5 Speed 100.00 Mhz (enabled)
HUB in Module 1/Slot 4: Revision 5 Speed 100.00 Mhz (enabled)
IP27prom in Module 1/Slot n1: Revision 6.156
IP27prom in Module 1/Slot n2: Revision 6.156
IP27prom in Module 1/Slot n3: Revision 6.156
IP27prom in Module 1/Slot n4: Revision 6.156
IO6prom on Global Master Baseio in Module 1/Slot io1: Revision 6.156
barry 2# diskpatch -v
sc0d1l0: Disk MAXTOR ATLAS10K5_73SCA JNX0 Serial: D203EG7K
barry 3# uname -aR
IRIX64 barry 6.5 6.5.30f 07202013 IP27
